Flat tube dimensions of condenser

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Production was gradually switched from calendar week 45, 1998 onwards (initially for Audi A6 with 6-cyl. diesel engine) to a condenser with smaller flat tubes.
Pay attention to part no. on condenser replacement (sometimes the only distinguishing feature).

→ Electronic Parts Catalog ETKA

Fig 1: Flat Tube Dimensions Of Condenser

Courtesy of VOLKSWAGEN UNITED STATES, INC.

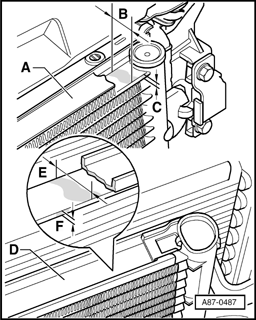

Condensers - A - with flat tube dimensions - B - = 20 mm and - C - = 3.0 mm must be filled with more refrigerant than condensers - D - with flat tube dimensions - E - = 18 mm or 16 mm and - F - = 1.7 mm → Electronic Parts Catalog ETKA.

Fig 2: Identifying Refrigerant R134a Capacity Or Delete Old Capacity Label

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pay attention to flat tube dimensions on condenser replacement. If a condenser with different dimensions is to be installed, also replace label - A - indicating refrigerant R134a capacity or delete old capacity and enter new figure using a waterproof pen → Electronic Parts Catalog ETKA.
