Air guides in vehicle interior
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The passenger compartment is vented by way of two air extraction vents (on left and right of luggage compartment in area of bumper) → Air extraction vent, checking .

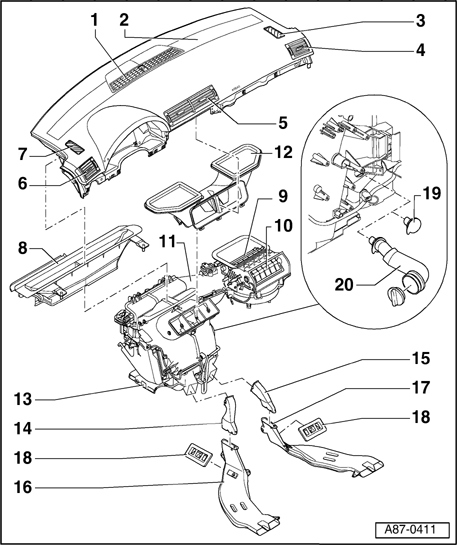

- The following illustration shows a instrument panel of the type installed in a Saloon or Avant up to VIN 399999 in Model Year 2005. The shape of the instrument panel on a Cabrio and for a Saloon or Avant as of VIN 400000 in Model Year 2005 (gradual introduction for the Cabrio in week 46/04 without prior specification of any particular VIN
) differs slightly from this illustration
→
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
1 - Defroster outlet vent
- For windshield
- Removing and installing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Crushing of intermediate piece between air conditioner and air guide in instrument panel on installing instrument panel will result in irregular or inadequate air routing to windshield →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Different versions for vehicles up to VIN 399999 and as of VIN 400000 in Model Year 2005 (different versions of Sunlight Photo Sensor G107 for Saloon and Avant; gradual introduction for the Cabrio in week 46/04 without prior specification of any particular VIN)
2 - Instrument panel
- Removing and installing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Different versions for Saloon or Avant on vehicles up to VIN 399999 and as of VIN 400000 in Model Year 2005 (Saloon and Avant; gradual introduction for the Cabrio in week 46/04 without prior specification of any particular VIN)
- With air guides to defroster vents and instrument panel vents on "drivers and front passengers side"
3 - Defroster outlet vent
- Passengers side window
- Removing and installing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
4 - Instrument panel vent
- Passengers side
- Removing and installing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
5 - Instrument panel vent
- Center
- Removing and installing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
6 - Instrument panel vent
- Drivers side
- Removing and installing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
7 - Defroster outlet vent
- Drivers side window
- Removing and installing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
8 - Intermediate piece/defroster channel
- Removing and installing → Defroster outlet vent intermediate piece for front windshield, removing and installing
9 - Fresh-air intake
- Air is drawn in via the dust and pollen filter installed in the plenum chamber
10 - Recirculated-air intake
- Air is drawn in beneath glove compartment from passengers footwell
11 - Air conditioner
- Removing and installing air conditioner → Heating and A/C unit, removing and installing
12 - air guide/instrument panel vents
- Center
13 - Front footwell vents
- Drivers and passengers side
- Removing and installing → Footwell vents front, removing and installing
14 - Intermediate piece to rear footwell vent air guide
- Drivers side
15 - Intermediate piece to rear footwell vent air guide
- Passengers side
16 - Air footwell vent duct, rear
- Drivers side
17 - Air footwell vent duct, rear
- Passengers side
18 - Trim panel with vent openings
19 - Sealing plug
- Only installed on vehicles without glove compartment cooling
20 - air guide to glove compartment
- Only installed on vehicles with glove compartment cooling
