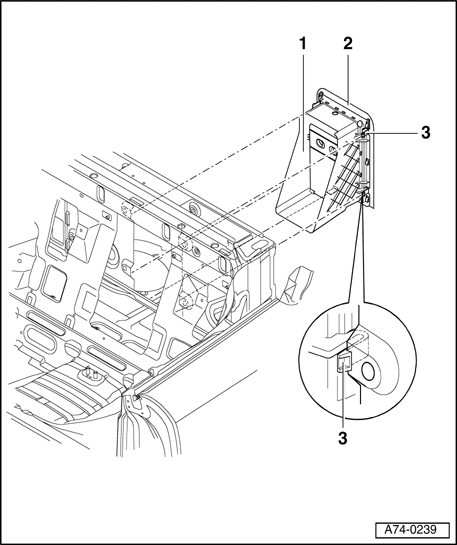

Ski bag, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Ski bag
- Removing
- Remove ski bag panel - 2 - → Removing and installing trim for through-load bag .
- Using a screwdriver, pry out clips - 3 - (4x).
- Pull out ski bag - 1 -.
2 - Panel
3 - Clips (4x)
