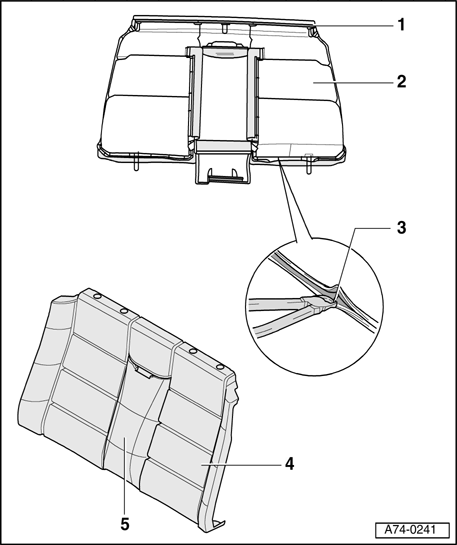

Cover and padding for rear seat backrest, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Fastening strip
2 - Padding
3 - Staples
4 - Seat cover
- Removing
- Remove rear seat backrest → Rear seat backrest, assembly overview .
- Remove head restraint guides → Head restraint guides, removing and installing .
- Disengage center armrest - 5 -.
- Pry off securing strip - 1 -.
- Cut through staples - 3 -.
- Fold cover - 4 - up.
- Remove cover - 4 - upward and cut through staples - 3 -.
- Remove padding - 2 -.
- Installing
- Replace staples - 3 -.
- Install cover and padding in reverse order to removal.
5 - Center armrest
