Removing cover from padding

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

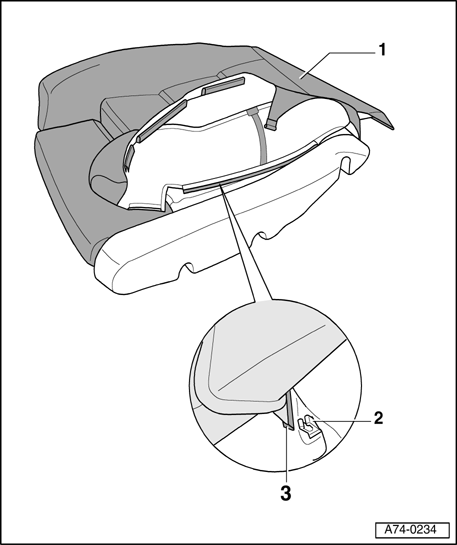

Fig 1: Identifying Cover, Plastic Clips & Fastening Strips

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover

Removing

Using a screwdriver pry fastening strips - 3 - out of plastic clips - 2 -.
Remove cover - 1 -.
On vehicles with ISOFIX holder and new cover fabric - 1 - , cut slots in fabric cover at location of ISOFIX holder.

Installing

Replace damaged plastic clips.
Pressing in plastic clips of transverse rods.
Installation is in reverse order of removal.

2 - Plastic clips

3 - Fastening strips
