Removing cover and cushion from seat pan
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

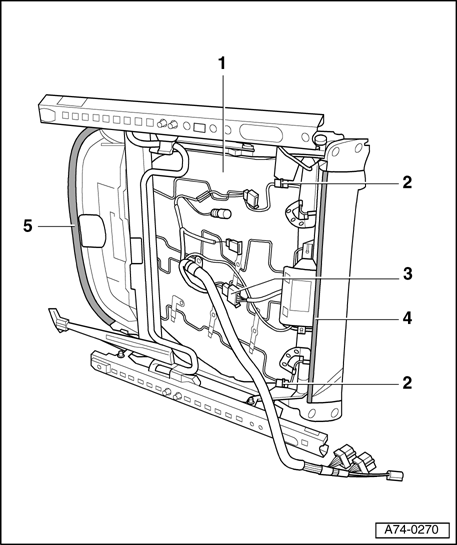

1 - Cover and padding
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove storage compartment → Storage compartment, removing and installing .
- Remove backrest adjuster → Backrest adjuster, removing and installing .
- Remove seat height adjuster → Seat height adjuster, removing and installing .
- Remove side trim on outboard side → Side trim on sill panel side, removing and installing .
- Remove side trim on inboard side → Side trim on tunnel side, removing and installing .
- Remove backrest → Front seat backrest, assembly overview .
- Disconnect heated seat connector -3-.
- Pinch off clips - 2 - (2x).
- Pry out piping at rear - 4 -.
- Pry out surround piping - 5 -.
- Remove cover and padding - 1 -.
- On vehicles with ISOFIX holder and new cover fabric - 1 - , cut slots in fabric cover at location of ISOFIX holder.
2 - Clips (2x)
3 - Heated seat connector
4 - Rear piping
5 - Surround piping
