Seat heating element (standard seat), replacing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat → Seat, assembly overview .
Remove backrest → Front seat backrest, assembly overview .
Remove cover and padding from seat pan → Seat pan cover and padding (standard seat), removing and installing .

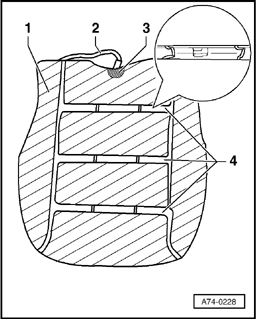

Fig 1: Identifying Electrical Wire, Heating Element, Gap & Gap Positions

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Cut electrical wire - 2 - off old heating element - 1 -.
Align heating elements - 1 - on the seat cushion, remove the protective film and bond the heating elements firmly onto the padded surfaces.
Push the electric cable - 2 - into the gap - 3 -.
The connecting cables must be laid without crossing in the bottom of the gaps at positions - 4 -.
