Detaching cover from padding

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

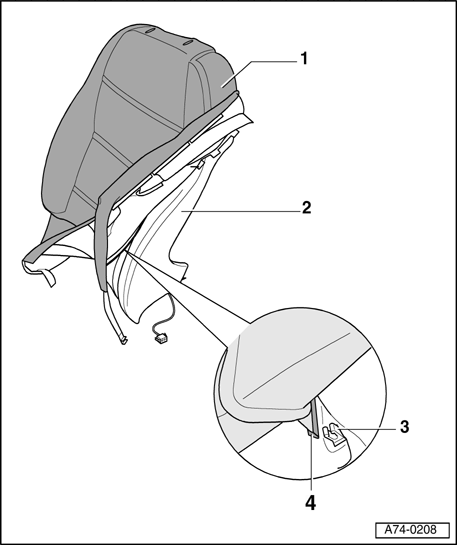

Fig 1: Detaching Cover From Padding

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat cover

NOTE:

When replacing cover, order replacement side trim for sill panel side .
When installing a new cover - 1 - cut a slot in cover - 1 - at location of backrest release.

Removing
- Use a screwdriver to pry the securing strips - 4 - out of plastic clips - 3 -.

Installation

Installation is in reverse order of removal.
Replace damaged plastic clips.

2 - Padding

3 - Plastic clips

4 - Securing strips
