Removing and installing rear rail cover for front seat

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

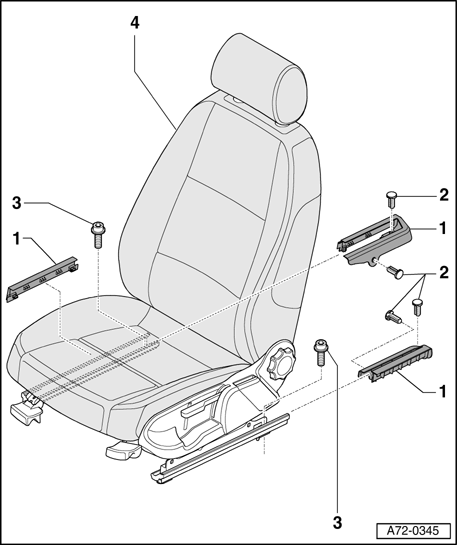

Fig 1: Removing/Installing Rear Rail Cover For Front Seat

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear rail cover

Removing

Pull handle for forward and backward adjustment and move front seat - 4 - forward as far as possible.
Remove securing clips - 2 - (4x).
Remove rail cover - 1 - (2x).
Remove bolt - 3 - (2x).

2 - Securing clip (4x)

3 - Bolt (2x)

Tightening torque 50 Nm

4 - Front seat
