Removing and installing front seat rail cover for front seat

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

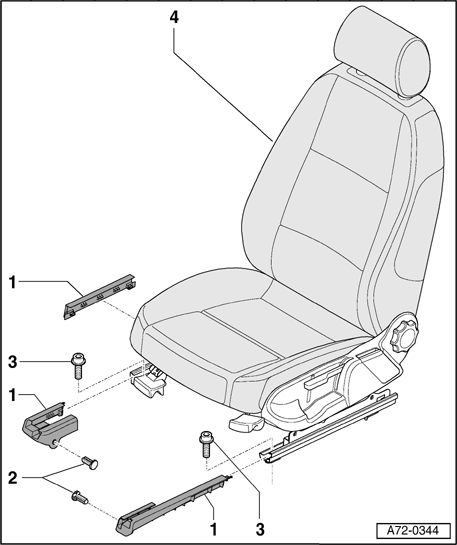

Fig 1: Removing/Installing Front Seat Rail Cover For Front Seat

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front rail cover

Removing

Pull handle for forward and backward adjustment and move front seat - 4 - to rearmost position.
Remove securing clip - 2 - (2x).
Remove rail cover - 1 - (2x).
Remove bolts - 3 - (2x).

2 - Securing clip (2x)

3 - Bolt (2x)

Tightening torque 50 Nm

4 - Front seat
