Removing and installing belt mount

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

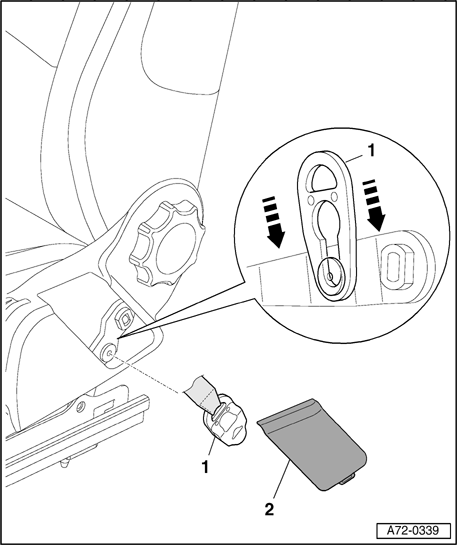

Fig 1: Removing/Installing Belt Mount
GW00020745Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Belt mount

NOTE:
  • Height adjustable seat: Raise seat.

Removing

2 - Cover
