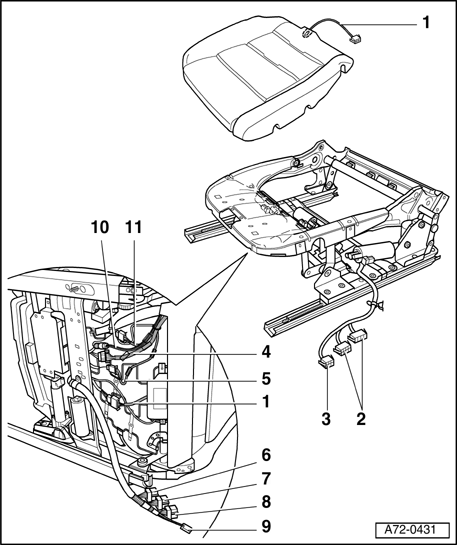

Seat wiring assignment
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Seat heating wiring harness
2 - Seat adjustment connectors (2x)
3 - 4-way lumbar support connector
4 - Electric lumbar support wiring harness, inboard side
5 - Backrest heating wiring harness
6 - Buckle interrogation connector (black)
7 - Seat heating connector (green)
8 - Power supply connector (red)
9 - Airbag connector (yellow)
10 - Airbag wiring harness
11 - Electric lumbar support wiring harness for 4-pin side airbag
