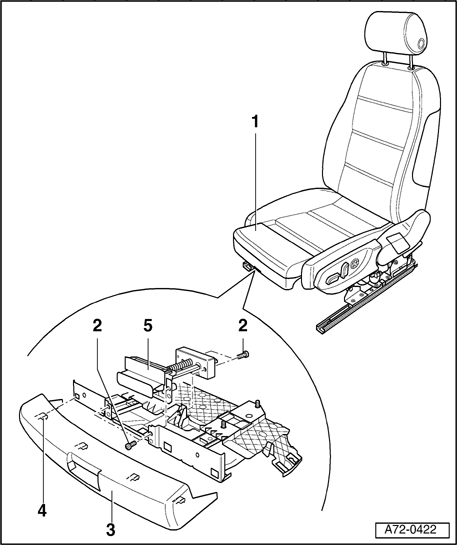

Seat cushion extension (sports seat), assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Seat cushion extension
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Detach cover and padding from seat pan → Seat pan cover and padding (sports seat), assembly overview .
- Detach seat cushion extension from cover and padding → Seat pan cover and padding (sports seat), assembly overview .
- Installing
- Installation is in reverse order of removal.
2 - Bolts (4x)
3 - Panel
- Removing
- Pry clips - 4 - (4x) off trim - 3 -.
- Installing
- Installation is in reverse order of removal.
4 - Clips (4x)
5 - Handle
- Removing
- Remove bolts - 2 - (4x).
- Remove handle - 5 -.
- Installing
- Installation is in reverse order of removal.
