Forward and backward seat adjustment motor, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the motor is faulty, the top support of the seat pan must be replaced → Front seat with faulty forward and backward seat adjustment motor or defective control unit, removing and installing .

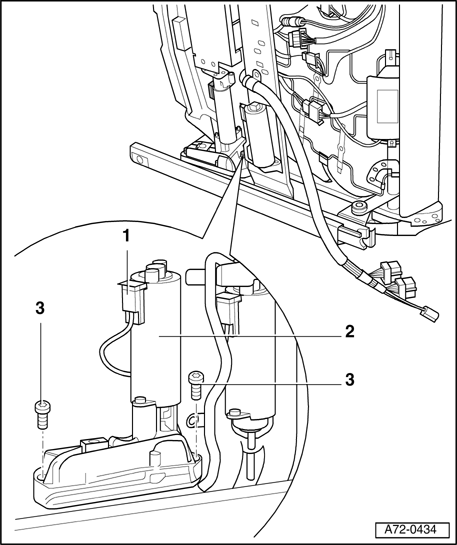

Fig 1: Forward And Backward Seat Adjustment Motor, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Lumbar support adjustment motors (2x)

2 - Seat height adjustment motor

3 - Seat inclination adjustment motor

4 - Forward and backward seat adjustment motor

5 - Backrest adjustment motor

Fig 1: Forward And Backward Seat Adjustment Motor, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Connector

2 - Seat inclination adjustment motor

Removing

Remove seat → Seat, assembly overview .
Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
Attach front seat to fixture for seat repair VAS 6136.
Remove control unit → Control unit, removing and installing .

Disconnect connector - 1 -.
Remove bolts - 3 - (2x).
Remove seat inclination adjustment motor - 2 -.

Installing

Installation is in reverse order of removal.

3 - Bolts (2x)

Tightening torque 10 Nm

4 - Forward and backward seat adjustment motor

5 - Backrest adjustment motor
