Easy-entry facility, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Removing

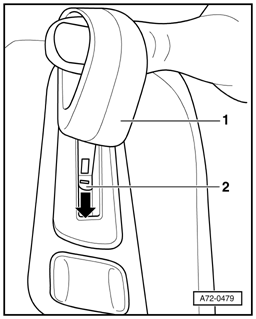

- Press handle - 1 - upward.
- Release tab - 2 - in direction of - arrow - using a screwdriver and, at the same time, pull off handle - 1 -.
- Unclip cover plate - 1 -.
- Disconnect connector - 3 -.
- Remove cover plate - 1 -.
- Installing
NOTE:
- In order to be able to press in the handle, the metal pin in the cover plate aperture must be pushed upward with a screwdriver.
- Install easy-entry facility in reverse order of removal. Make sure handle - 2 - engages.
