Backrest (standard seat), replacing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Sports backrest only is available as replacement part. Convert the sports backrest for the standard seat.

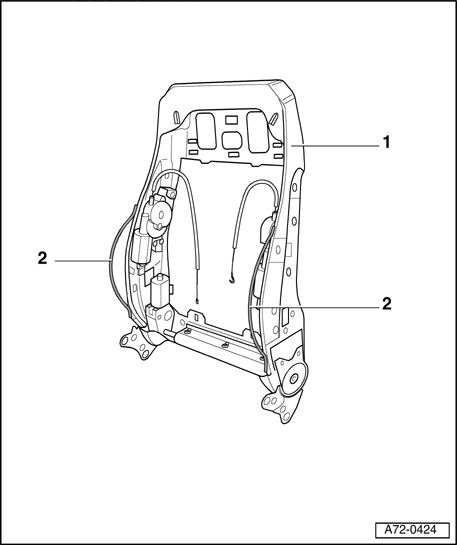

Fig 1: Backrest (Standard Seat), Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Sports backrest

Conversion

Detach wire clips - 2 - (2x) from sports seat backrest - 1 -.
Paint layer must be replicated and, if necessary, the protection measures against corrosion must be performed.

2 - Wire clips (2x)
