Variable convertible top compartment, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

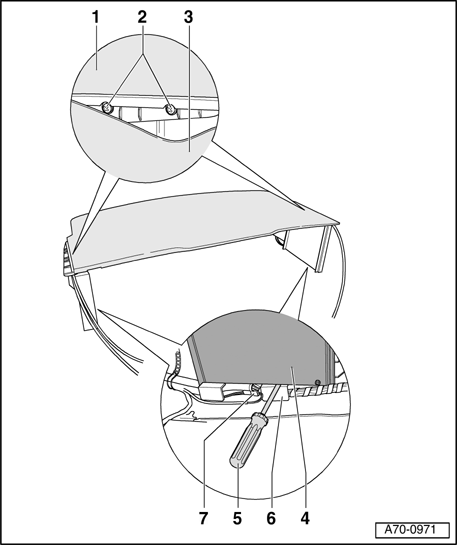

1 - Variable convertible top compartment
- Removing
- Move convertible top into such a position that convertible top compartment is open.
- Lift up side lining in convertible top compartment.
- Remove bolts left and right - 2 - (2x).
- Close convertible top.
- Open luggage compartment lid.
- Remove lid of convertible top compartment → Convertible top compartment lid, assembly overview .
- Remove handle mount trim → Handle mount trim, assembly overview .
- Detach Bowden cables from clips.
- Using a large, flat screwdriver - 6 - , work along between convertible top compartment side section - 4 - and console - 3 - and carefully detach convertible top compartment from console - 5 - (secured with adhesive tape)
- Disconnect connector to microswitch - 7 - on right side.
- Detach Bowden cables from clips.
- Close luggage compartment lid.
- Move convertible top back into position "Convertible top compartment open".
- Second mechanic is required to lift out.
- Position handle mount trim on variable convertible top compartment.
- Remove luggage compartment side trim on left → Left side trim, assembly overview and right → Right side trim, assembly overview .
NOTE:
- The variable convertible top compartment must be lifted at sides of frame section, do not hold convertible top compartment in center and extend mechanism.
- Lift out variable convertible top compartment - 1 - at both sides on side sections - 4 -.
- Make sure Bowden cables do not catch.
2 - Bolts (2x)
- Tightening torque 2 Nm
3 - Convertible top compartment side lining
4 - Convertible top compartment side section
5 - Flat screwdriver
6 - Console
7 - Microswitch connector
