Side trim, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

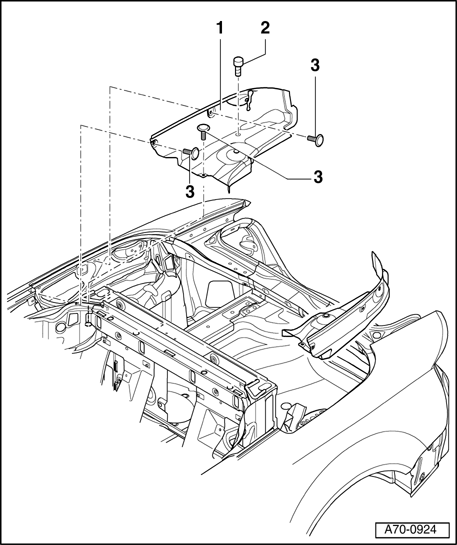

1 - Side trim
- Removing
- Open convertible top.
- Fold convertible top compartment down.
- Unclip clips - 3 - (3x).
- Remove stop buffer - 2 -.
- Fold seal aside and pull out side trim - 1 -.
- Installing
NOTE:
- After installation ensure that seal is pulled correctly over trim.
- Install side trim - 1 - in reverse order of removal.
2 - Stop buffer
3 - Clips (3x)
