Rear trim, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

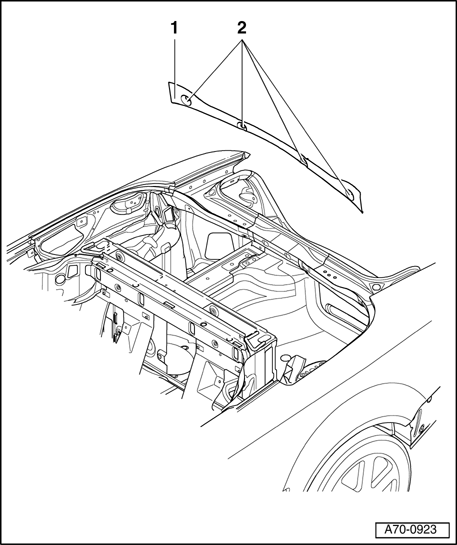

1 - Rear trim
- Removing
- Open convertible top.
- Fold convertible top compartment down.
- Unclip clips - 2 - (4x).
- Fold away seal and pull out rear trim - 1 -.
- Installing
- After installation ensure that seal is installed correctly.
- Install rear trim - 1 - in reverse order of removal.
2 - Clips (4x)
