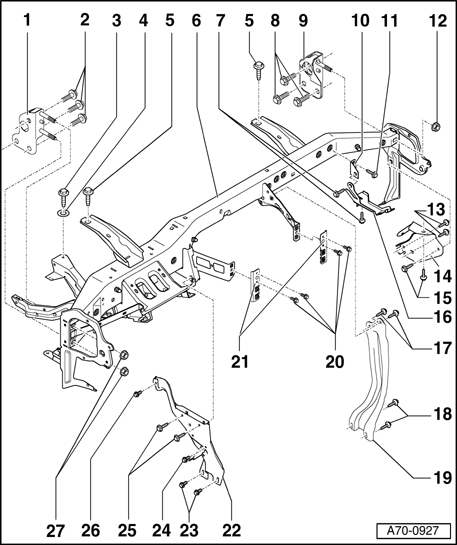

Components locations, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Angle bracket, left
- For central tube
2 - Bolts (3x)
- Tightening torque 23 Nm
3 - Bolt
- Tightening torque 9 Nm
4 - Sealing washer
5 - Bolt
- Tightening torque 6 Nm
6 - Central tube
7 - Bolts (2x)
- Tightening torque 9 Nm
8 - Bolts (3x)
- Tightening torque 23 Nm
9 - Angle bracket, right
- For central tube
10 - Angle bracket
11 - Bolt
- Tightening torque 9 Nm
12 - Nut
- Tightening torque 35 Nm
13 - Bolts (2x)
- Tightening torque 8 Nm
14 - Bracket
- For air conditioner unit
15 - Bolts (2x)
- Tightening torque 9 Nm
16 - Brace
17 - Bolts (2x)
- Tightening torque 9 Nm
18 - Bolts (2x)
- Tightening torque 9 Nm
19 - Support
20 - Bolts (4x)
- Tightening torque 5 Nm
21 - Adapter center section
22 - Support
23 - Bolts (2x)
- Tightening torque 9 Nm
24 - Bolt
- Tightening torque 8 Nm
25 - Bolts (2x)
- Tightening torque 9 Nm
26 - Bolt
- Tightening torque 8 Nm
27 - Nut
- Tightening torque 35 Nm
