Rollover protection impact bar, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

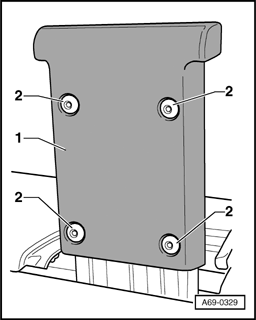

Fig 1: Rollover Protection Impact Bar Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Extend rollover bar. Refer to guided fault-finding, body, general body repairs, 01 systems with self-diagnosis capability, Airbag 8.4E, Functions-Airbag 8.4E J234-Airbag Control Module, output DTM.
Remove bolts - 2 - (4x). Tightening torque 5 Nm
Remove impact bar - 1 - upward.
When installing, push the back of the impact bar under the guide.

Installing

Installation is in reverse order of removal.
