Front passenger airbag, assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Observe safety precautions for working on airbag →
Safety precautions when working on airbag .

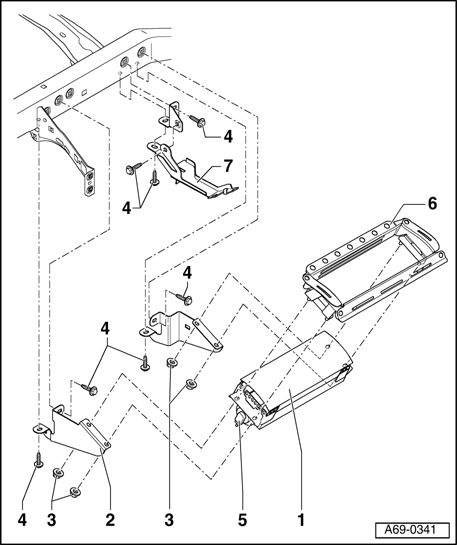

1 - Passengers airbag unit
- Removing
- Disconnect battery Ground (GND) strap.
- Remove glove compartment → Glove compartment, assembly overview .
- Disconnect connector behind airbag unit Disconnecting airbag connector .
CAUTION:
Never unplug connector - 5
- (2-pin) at front passengers airbag unit.
- Remove brace - 7 -.
- Remove supports - 2 - behind airbag unit.
- Remove nut - 3 - (4x).
- Remove airbag unit.
- Put airbag unit down with impact cushion facing upward.
- Installing
- Install airbag unit.
- Ensure connector behind airbag unit engages properly (audibly) Disconnecting airbag connector .
- Switch ignition on.
CAUTION:
There must be no one in the vehicle when the battery is being connected.
- Connect battery Ground (GND) strap.
2 - Support
- Must be replaced after airbag triggering.
- Remove front passengers airbag unit.
- Remove bolts - 4 - (4x).
3 - Nut (4x)
- Must be replaced after airbag triggering
- Tightening torque 9 Nm
4 - Bolts (4x)
- Must be replaced after airbag triggering
- Tightening torque 9 Nm
5 - Connector
6 - Frame for airbag unit
- Must be replaced after airbag triggering
- Remove front passengers airbag unit.
7 - Brace
