Airbag Control Module -J234-, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Observe safety precautions for working on airbag → Safety precautions when working on airbag .

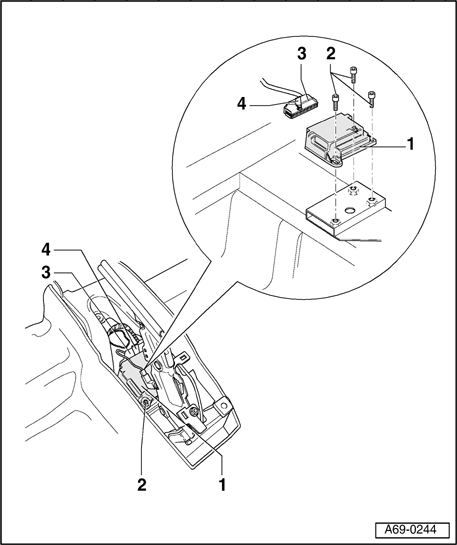

Fig 1: Airbag Control Module -J234- Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Airbag Control Module J234

Removing

Disconnect battery Ground (GND) strap.
Remove center console → Center console, assembly overview .
Release catch - 4 - at connector - 3 -.
Pull connector - 3 - out of control unit - 1 -.

Remove bolts - 2 - (3x).
Detach control unit.

2 - Bolts (3x)

Tightening torque 7 Nm

3 - Connector

4 - Securing clip

NOTE:

After connecting the battery observe the necessary measures. →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET
If Airbag Malfunction Indicator Lamp (MIL) K75 signals a malfunction after assembly, use vehicle diagnostic, testing and information system VAS 5051 A to interrogate, erase and then again interrogate DTC memory.
The control module must be recoded after replacement.

Refer to guided fault-finding, body, general body repairs, 01 systems with self-diagnosis capability, Airbag 8.4E, Functions-Airbag 8.4E J234-Airbag Control Module, output DTM.
