Front airbag crash sensor, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Observe safety precautions for working on airbag → Safety precautions when working on airbag .

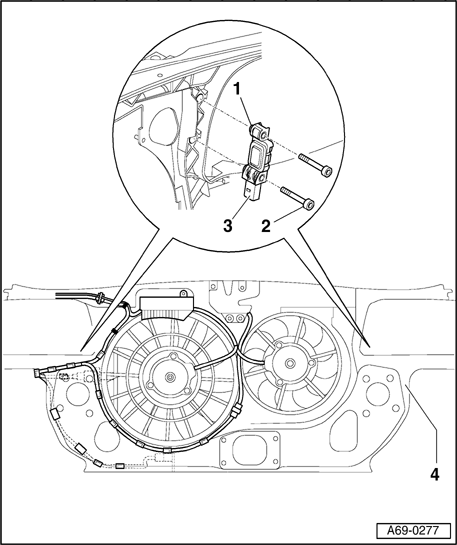

Fig 1: Front Airbag Crash Sensor Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front airbag crash sensor

Removing

Disconnect battery Ground (GND) strap.
Depending on engine version, remove air duct, if necessary.
Release tab at yellow connector - 3 - and disconnect connector.
Remove two bolts - 2 - on crash sensor - 1 -.

Installing

Switch ignition on.

CAUTION: There must be no one in the vehicle when the battery is being connected.

Connect battery Ground (GND) strap.

2 - Bolts (2x)

Tightening torque 9 Nm

3 - Connector

4 - Lock carrier

NOTE:

After connecting the battery observe the necessary measures. →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET
If Airbag Malfunction Indicator Lamp (MIL) K75 signals a malfunction after assembly, use vehicle diagnostic, testing and information system VAS 5051 A to interrogate, erase and then again interrogate DTC memory.
