Tie-down console

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1410

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1410

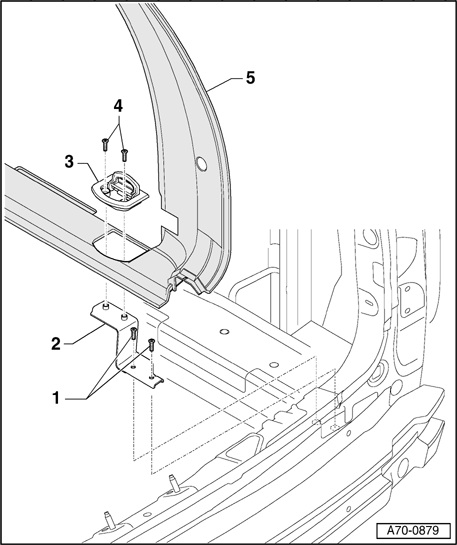

Fig 2: Tie-Down Console Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Screws, (2x)

Tightening torque 4 Nm

2 - Tie-down console

Removal:

Remove bolts - 4 - (4x).
Remove tie-downs - 3 -.
Remove luggage compartment floor mat - 3 -.
Remove bolts - 1 - (Qty. 2).

Installing:

Installation is reverse of removal.

3 - Tie-downs

4 - Screws, (2x)

Tightening torque 4 Nm

5 - Luggage compartment floor covering
