Roof panel trim, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

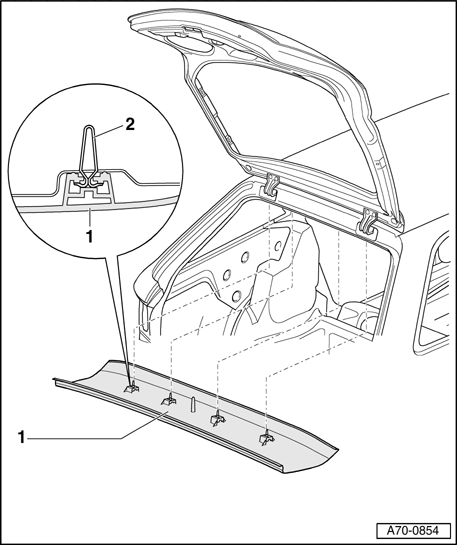

Fig 1: Roof Panel Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Roof panel trim

Removal:

Unclip four clips - 2 - on body.
Remove roof end trim - 1 -.

Installing:

Installation is reverse of removal. Observe the following when doing so:

Rear lid rubber must be laid over roof end trim.

CAUTION: Ensure trim is held securely.

2 - Spring clips (Qty. 4)
