Partition grille, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

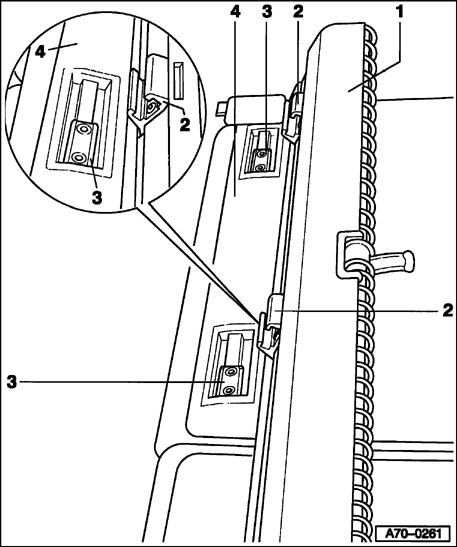

1 - Partition grille
- Removal:
- Fold both rear seat backrests forward.
- Press partition grill - 1 - from 1/3 rear seatback in direction toward 2/3 rear seatback - 4 -.
- Remove partition grille.
- Installing:
- Guide holding bracket - 2 - into recess on 2/3 seatback.
- Press partition grill - 1 - in direction of 1/3 seatback, lift 2/3 seat back slightly, to do so.
2 - Retaining profile
3 - Bracket
4 - 2/3 rear seat backrest
