Rear cross panel trim, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1410

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1410

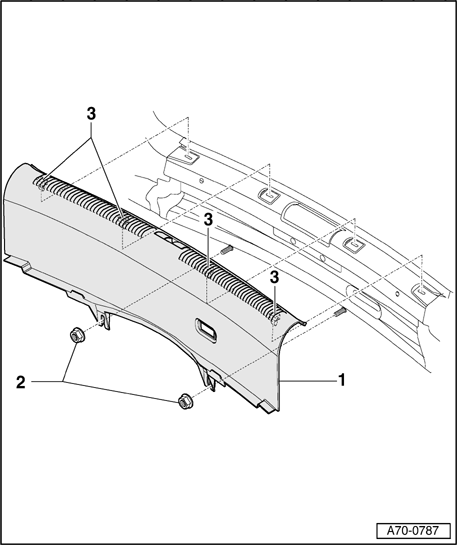

Fig 2: Rear Cross Panel Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear cross panel trim

Removal:

Remove floor covering from luggage compartment.
Loosen two nuts - 2 - on rear cross panel trim - 1 - behind spare wheel and remove nuts.
Remove luggage compartment lighting connector.
Unclip rear cross panel trim - 1 - upward from four metal clips - 3 -.

Installing:

Installation is reverse of removal. Observe the following when doing so:

After assembling trim, make sure seal is properly fitted.
Reconnect lighting connector.

2 - Nuts (2x)

Tightening torque 5 Nm

3 - Metal clips (Qty. 4)
