Electrical sun shade on rear window, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

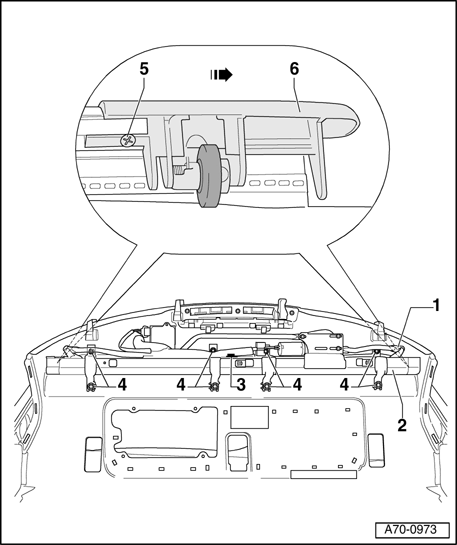

- Rear shelf is depicted from rear.
1 - Rear shelf
2 - Electrical sun shade
- Removing:
- Remove rear shelf → Rear shelf, removing and installing .
- Pull out sun shade approx. 50 mm at covers with wheel - 6 -.
- Clamp something between sun shade and rear shelf.
- Loosen bolts - 5 - (2x).
- Remove cover with wheel - 6 - in direction of arrow.
- Remove nut - 4 - (8x).
- Remove sun shade - 2 -.
- Installing:
Installation is reverse of removal.
3 - Connector
4 - Nut (8x)
5 - Screws, (2x)
6 - Cover with wheel
