Dirt tray, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

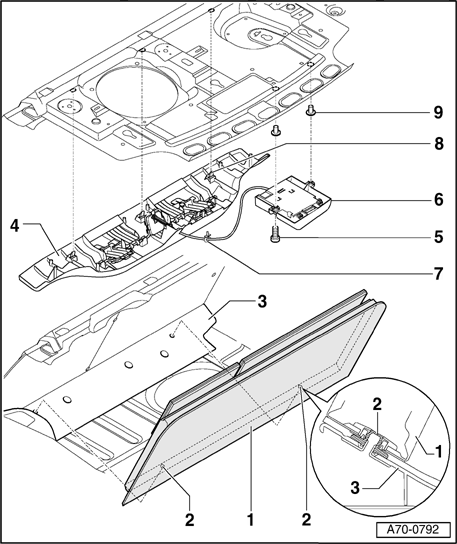

1 - Cargo tray (optional)
- Removal:
- Release cargo tray - 1 - from lock - 4 -.
- Unclip two clips - 2 - between cargo tray - 1 - and rear panel sill - 3 -.
- Remove cargo tray - 1 - upward.
- Installing:
Installation is reverse of removal.
2 - Clips (Qty. 2)
3 - Rear panel sill
4 - Cargo tray retainer
- Removal:
- Remove bolt - 5 - on cargo tray handle - 6 -.
- Remove securing clip - 7 - of handle.
- Remove handle - 6 -.
- Loosen two expanding nuts - 9 -.
- Unclip four clips - 8 -.
- Remove cargo tray lock - 4 -.
- Installing:
Installation is reverse of removal.
5 - Screw
6 - Grip
7 - Handle securing clip
8 - Clips (Qty. 4)
9 - Expanding nuts (Qty. 2)
