Instrument panel central tube, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Pry Lever 80-200

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pry lever 80 - 200

Fig 2: Identifying Torque Wrench V.A.G. 1331

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1331

Fig 3: Identifying Torque Wrench V.A.G 1783

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1783

Removing

Remove instrument panel → Instrument panel, removing and installing .

Fig 4: Removing Bolts Of Fuse Carrier

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 - (2x) of fuse carrier - 2 -.

Tightening torque: 3 Nm

Lay down fuse carrier with connected wires.
Disengage wiring harness on instrument panel carrier and free it up.

Fig 5: Identifying Bolts, 3-Socket Relay Carrier & 6-Socket Relay Carrier

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 - (2x) of 3-socket relay carrier - 2 -.

Tightening torque: 3 Nm

Remove nuts - 3 - (2x) of 6-socket relay carrier - 4 - with control module for vehicle electrical system.

Tightening torque: 2.4 Nm

Lay down relay carrier with connected wires.
Remove wiring harness behind relay carriers from central tube and free it up.

Fig 6: Removing Bolt Of Pedal Bracket

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolt - 2 - of pedal bracket.

Tightening torque: 23 Nm

Remove screws - 1 - (4x).

Tightening torque: 22 Nm

Place steering column in drivers footwell.

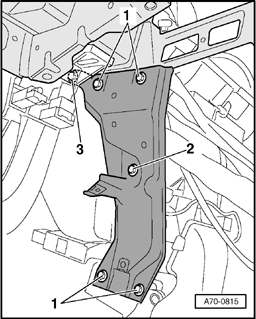

Fig 7: Identifying Left Brace Bolts & Screw

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 - (4x) of left brace.

Tightening torque: 9 Nm

Remove screw - 2 -.

Tightening torque: 8 Nm

NOTE:

If brace remains installed, it is sufficient to only loosen bolt - 3 - and swivel brace downward.

Loosen/remove bolt - 3 - (front mount for brace on air conditioner).

Tightening torque: 8 Nm

Remove support or tilt it downward.

Fig 8: Disengaging Air Guide At Air Conditioner And Removing It Upward

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disengage air guide at air conditioner - arrows 1 - and remove it upward - arrows 2 -.

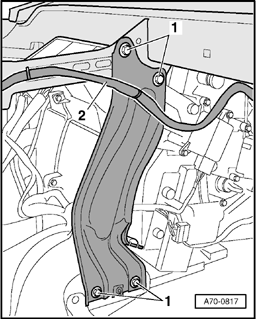

Fig 9: Removing Screws & Expose Cable

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - 1 - (4x).

Tightening torque: 9 Nm

Expose cable - 2 -.
Remove right support.

Fig 10: Removing Bolts Of Bracket For Air Conditioner

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 - (2x) of bracket for air conditioner.

Tightening torque: 11 Nm

Fig 11: Removing Securing Clips And Cowl

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pry both cover caps - 3 - out with a screwdriver.
Loosen hex nuts - 4 - a few turns.
Loosen wiper arm - 2 - from wiper axle by tilting slightly.
Completely remove hex nuts and remove wiper arm.

Remove securing clips - 1 - and remove cowl panel grille - 5 -.

Fig 12: Removing Screws And Cover From E-Box In Plenum Chamber

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove E-box plenum chamber cover - arrows -.

Fig 13: Using Screwdriver To Remove Retainer Bar And Engine Control Module (ECM) J623

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully pry off mounting bracket - arrow - assisted with a screwdriver and lay Engine Control Module (ECM) with attached wires aside.
Unclip retaining bracket.
If present, lay aside transmission control module with wiring connected.

Fig 14: Removing Bolts Of Connector Station
