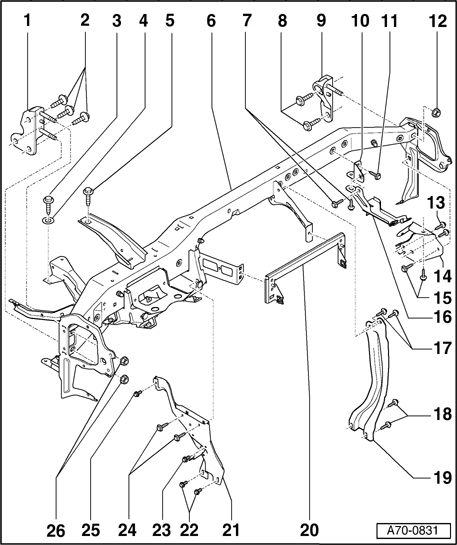

Component locations, overview
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Angle bracket
2 - Bolts (3x)
- Tightening torque 23 Nm
3 - Screw
- Tightening torque 6 Nm
4 - Sealing washer
5 - Screw
- Tightening torque 6 Nm
6 - Central tube
7 - Screws, (2x)
- Tightening torque 9 Nm
8 - Screws, (2x)
- Tightening torque 23 Nm
9 - Angle bracket
10 - Angle bracket
11 - Screw
- Tightening torque 9 Nm
12 - Nut
- Tightening torque 35 Nm
13 - Screws, (2x)
- Tightening torque 8 Nm
14 - Angle bracket
- For air conditioning unit
15 - Screws, (2x)
- Tightening torque 9 Nm
16 - Supports
17 - Screws, (2x)
- Tightening torque 9 Nm
18 - Screws, (2x)
- Tightening torque 9 Nm
19 - Supports
20 - Reinforcing bracket
21 - Supports
22 - Screws, (2x)
- Tightening torque 9 Nm
23 - Screw
- Tightening torque 8 Nm
24 - Screws, (2x)
- Tightening torque 9 Nm
25 - Screw
- Tightening torque 8 Nm
26 - Nut
- Tightening torque 35 Nm
