Child seat anchorage bracket (Avant), removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Torque Wrench V.A.G. 1331

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1331

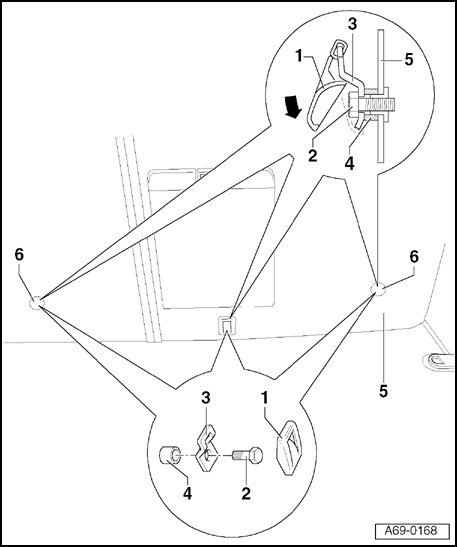

Fig 2: Child Seat Anchorage Bracket (Avant) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover cap

To install, position top and press down in - direction of arrow -.

2 - Screw

Tightening torque 23 Nm

3 - Anchorage

4 - Spacer sleeve

5 - Rear seat backrest

6 - Plugs

Remove if necessary and install -items 1 through 4-.
