Passenger airbag, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Torque wrench V.A.G 1410
- Vehicle Diagnosis, Testing and Information System VAS 5051 A
CAUTION:
Observe safety precautions for work on airbags →
Airbag safety precautions .

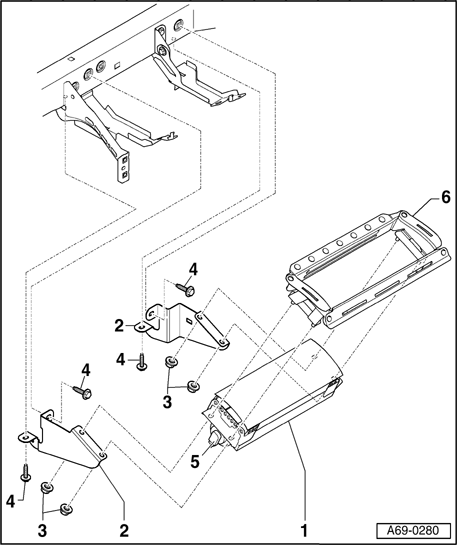

1 - Front passenger airbag unit
CAUTION:
Observe safety precautions for work on airbags →
Airbag safety precautions .
CAUTION:
Note assignment of airbag unit to instrument panel
.
- Removal:
- Disconnect the battery ground (GND) strap →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
- Remove glove compartment → Storage compartments and covers .
- Disconnect connector behind airbag unit Disconnect airbag connector
CAUTION:
Connector - 5
- (2-pin, red) on passenger airbag unit must not be disconnected under any circumstances!
- Remove brace behind airbag unit.
- Remove nut - 3 - (Qty. 4).
- Remove airbag unit.
- Lay airbag unit so padding faces upward.
- Installing:
CAUTION:
Note assignment of airbag unit to instrument panel
.
- Install airbag unit.
- Ensure connector behind airbag unit engages completely (audibly) Disconnect airbag connector
- Turn on ignition.
CAUTION:
No one should be in vehicle when connecting battery.
- Connect battery ground (GND) strap →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
NOTE:
- Follow safety measures after connecting battery →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
- If the Airbag Malfunction Indicator Lamp (MIL) K75 shows a malfunction after assembly, DTC memory must be checked with Vehicle Diagnostic, Testing and Information System VAS 5051 A, cleared and then rechecked.
2 - Supports
- Always replace after airbag has deployed.
- Remove passenger airbag unit
- Remove bolts - 4 - (Qty. 4).
3 - Nuts (Qty. 4)
- Tightening torque 9 Nm
- Always replace after airbag has deployed
4 - Screws (4x)
- Tightening torque 9 Nm
- Always replace after airbag has deployed
5 - Connector
6 - Airbag unit frame
- Always replace after airbag has deployed.
- Remove passenger airbag unit
