Front wheel housing liner, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

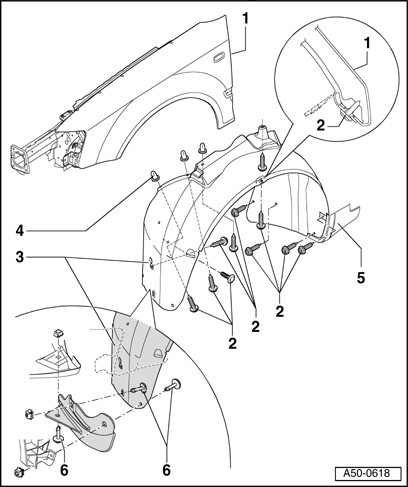

Fig 1: Front Wheel Housing Liner Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Fender

2 - Screw

2.3 Nm

3 - Front wheel housing liner

Remove front wheel before disassembly.
Disengage wheel housing liner from fender and pull downward and out.

4 - Spreader nut

5 - Sill panel cover

6 - Quick release screw
