Rear lid lettering

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Dimensional data for front-wheel drive vehicles

NOTE:

Outer edges of rear lid and lines extending from lower rear lights are used as reference edges.

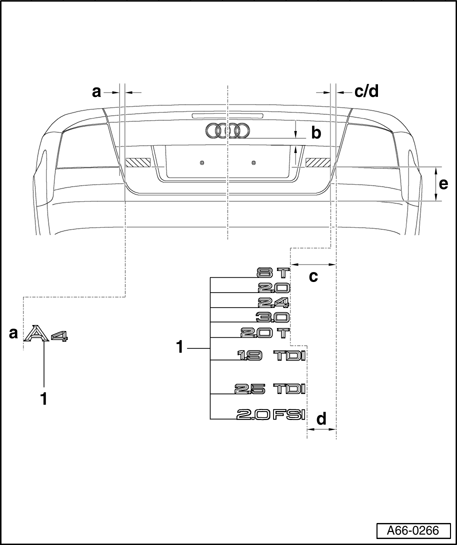

Fig 1: Rear Lid Lettering (Dimensional Data For Front-Wheel Drive Vehicles)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Name plate

Installation:

Warm vehicle and type designation to room temperature.
Bonding surfaces must be dry and free from dust and grease.
Clean outer panel with mineral spirits, treat with silicone remover and rub dry.
Pull off backing paper and press on characters, maintaining pressure for approx. 3 seconds.

- a - = 30 mm.
- b - = 28 mm.
- c - = 36 mm.
- d - = 28 mm.

- e - = 152 mm.

Dimensional data for All Wheel Drive (AWD) vehicles

NOTE:

Outer edges of rear lid and lines extending from lower rear lights are used as reference edges.

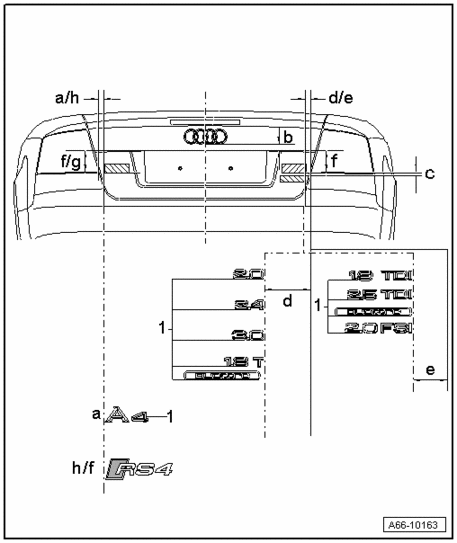

Fig 2: Rear Lid Lettering (Dimensional Data For All Wheel Drive (AWD) Vehicles)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Name plate

Installation:

Warm vehicle and type designation to room temperature.
Bonding surfaces must be dry and free from dust and grease.
Clean outer panel with mineral spirits, treat with silicone remover and rub dry.
Pull off backing paper and press on characters, maintaining pressure for approx. 3 seconds.

- a - = 30 mm.
- b - = 28 mm.
- c - = 4 mm.
- d - = 36 mm.

- e - = 13 mm.
- f - = 53 mm.

NOTE:

Dimensions - g - and - h - only apply to RS4
- g - = 68 mm.
- h - = 18 mm.
