Bumper crossmember, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Bumper cover removed.

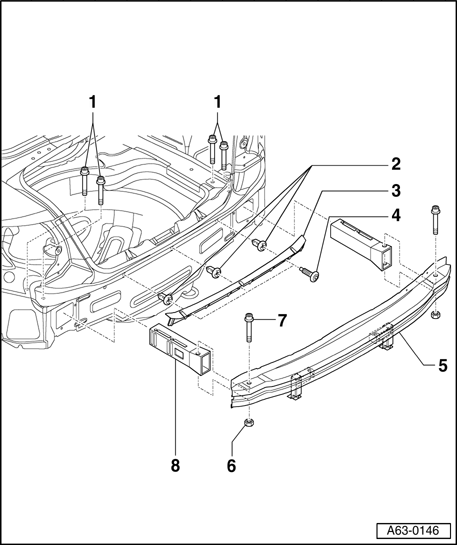

Fig 1: Bumper Crossmember Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Screw

18 Nm
Qty. 4

2 - Grommets

3 - Support piece

4 - Screw

1.5 Nm

5 - Cross member

6 - Nut

20 Nm
Qty. 2

7 - Screw

20 Nm
Qty. 2

8 - Impact absorber
