Front bumper (from model year 2006), removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

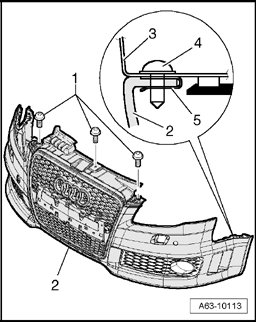

Fig 1: Front Bumper (From Model Year 2006) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 - from top of bumper cover - 2 -.

Only on RS4

Remove bolts - 1 - from top of bumper cover - 2 -.
Remove screw - 4 - from inside of fender - 3 -.

NOTE:

The bolt is only accessible after driving wheel housing liner back.

Fig 2: Identifying Spring Nut Placed On Bumper Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Spring nut - 5 - placed on bumper cover.

Fig 3: Identifying Quick-Release Fasteners And Noise Insulation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts and quick release screws - 1 - and - 2 -. Rear noise insulation (quick release screws - 3 -) remains installed.

NOTE:

For the sake of a better illustration, the wheels are shown removed in the illustrations.

Fig 4: Locating Left/Right Wheelhousing Liners In Front Area

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen left and right wheel housing liners in front area - arrows -.

Fig 5: Pulling Back Wheelhousing Liner & Unclipping Bumper Rear Edge From Catch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull back wheel housing liner - arrow A -.
Remove bolt - 2 - and nuts - 1 -.

NOTE:

On RS4 models, you must also loosen a screw on the inside of the fender. Front bumper (from model year 2006), removing and installing .

Unclip bumper rear edge from catch - arrow B -.
Repeat procedure on opposite side of the vehicle.

Fig 6: Adjusting Support Piece

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen adjustment screw - 3 - at support piece - 5 -.

The bracket - 4 - retracts into the support piece - 5 - and frees up the bumper cover - 1 -.

Pull bumper cover forward slightly.

Fig 7: Identifying Hose To Headlight Cleaning System & Bumper Cover Connector(s)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If installed, disconnect hose - 1 - to headlight cleaning system and reserve washer fluid in a clean container for re-use.
Disconnect harness connector(s) - 2 - to bumper.

Installing

Installation is reverse of removal, noting the following:

NOTE:

Before installing bumper, check to see if threaded pins at bumper rear edge as well as expanding clips and sleeves in the fenders are present.

Fig 8: Identifying Hose To Headlight Cleaning System & Bumper Cover Connector(s)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide bumper cover onto impact absorber and re-connect headlight cleaning system hose - 1 - and electrical harness connectors - 2 -.
Slide bumper cover into installation position. Ensure threaded pins in bumper side walls engage into holes at the fenders.

Fig 9: Pulling Back Wheelhousing Liner & Engaging Bumper Rear Edge Into Catch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull back wheel housing liner - arrow A -.
Engage bumper rear edge into catch - arrow B -.
Tighten nuts - 1 - and bolt - 2 -.

1 - Nut (4 Nm)

2 - Screw (1 Nm)

Repeat procedure on opposite side of the vehicle.

Further installation is performed in the reverse order of removal.
