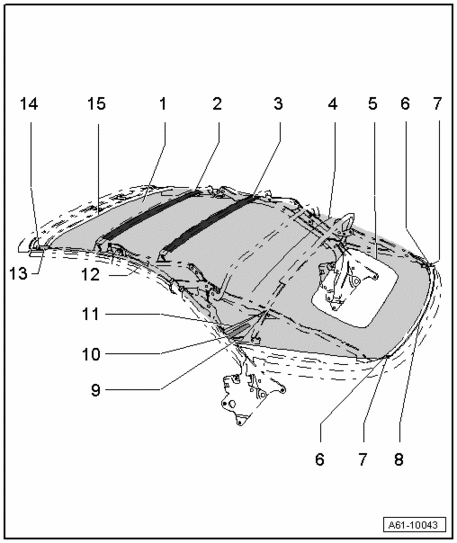

Convertible top headliner - assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Convertible top headliner
2 - Plastic profile
3 - Plastic profile
4 - Zip fastener
5 - Rear window frame
6 - Tab
7 - Rivet
8 - Plastic profile
9 - Tensioning band 3
10 - Strap
11 - Tensioning band 2
12 - Tensioning band 1
13 - Tab
14 - Screw
15 - Securing profile
