Convertible top cover - assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

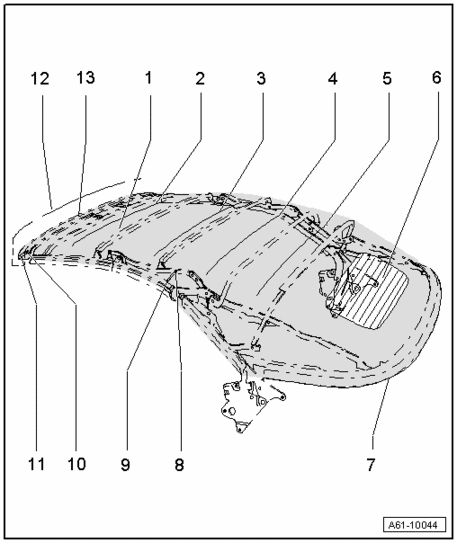

Fig 1: Convertible Top Cover - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Convertible top cover

2 - Zip fastener

3 - Zip fastener

4 - Zip fastener

5 - Zip fastener

6 - Rear window

7 - Plastic profile

8 - Rivet

9 - Tensioning strap

10 - Screw

11 - Tab

12 - Molding

3-part

13 - Plastic profile
