Convertible top - parts designations

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

These parts designations are used in the description for removal and installation of convertible top headliner, convertible top cover and convertible top upholstery.

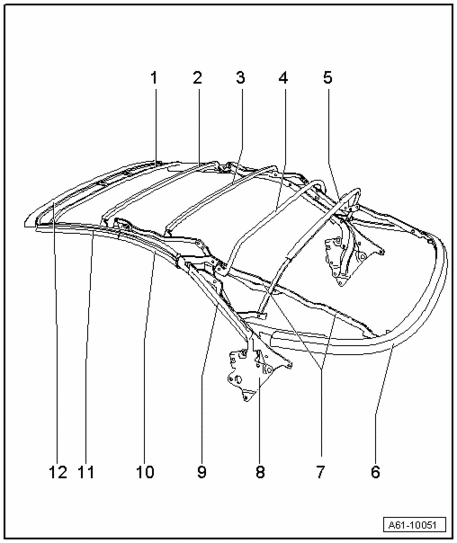

Fig 1: Convertible Top - Parts Designations

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rail "1"

2 - Rail "2"

3 - Rail "3"

4 - Rail "4"

5 - Rail "5"

6 - Bracket

7 - Center brace

8 - Main bracket

9 - Main guide

10 - Roof guide "2"

11 - Roof guide "1"

12 - Front rail
