Hydraulic lines to connecting plate, removing and installing: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Hydraulic Line Connect Tool 3335

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hydraulic Line Connect Tool 3335

Fig 2: Connecting Plate

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

Follow cleanliness rules → Cleanliness rules .

Hydraulic pump connection table Hydraulic pump connection table .

Remove hydraulic pump → Hydraulic unit (hydraulic pump), removing and installing .
Remove center and side bulkhead trim →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
.

Fig 3: Identifying Spring Washer

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Raise spring washer - 1 - on hydraulic lines to be removed (supply and return) over collar on connecting piece with a small screwdriver and remove.

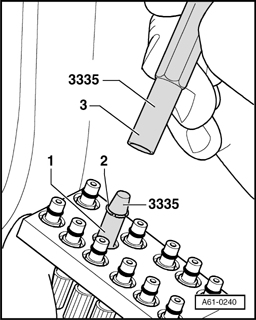

Fig 4: Identifying Hydraulic Line Connect Tool 3335 Sleeve, Spring Washer & Hydraulic Line Connect Tool 3335

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

Place hydraulic line with connecting piece through connecting plate.
Place Hydraulic Line Connect Tool 3335 sleeve - 1 - over connecting piece.
Slide spring washer - 2 - onto sleeve and press it on completely with Hydraulic Line Connect Tool 3335.

Fig 5: Springing Washer Must Slide Completely Over Collar On Connecting Piece & Coat Sealing Ring With Hydraulic Oil And Slide It Onto Connecting Piece

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Spring washer - 2 - must slide completely over collar on connecting piece - 1 -.

Coat sealing ring - 3 - with hydraulic oil and slide it onto connecting piece.
