Door window - assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

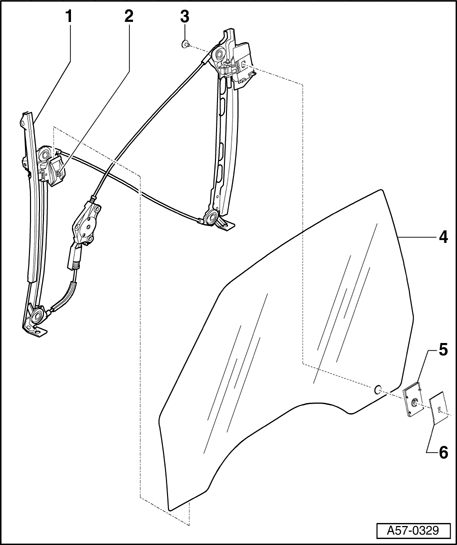

Fig 1: Door Window - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Window regulator

Must not be removed when door window is removed.
Basic setting → Window regulator, basic setting .

2 - Clamping brackets

With attached bolt.
6 Nm

3 - Locking screw

6 Nm

4 - Door window

Removing → Door window, removing and installing .
Adjusting → Door window, adjusting .

5 - Fastener

6 - Pressure plate
