Door lock (up to model year 2005) - assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

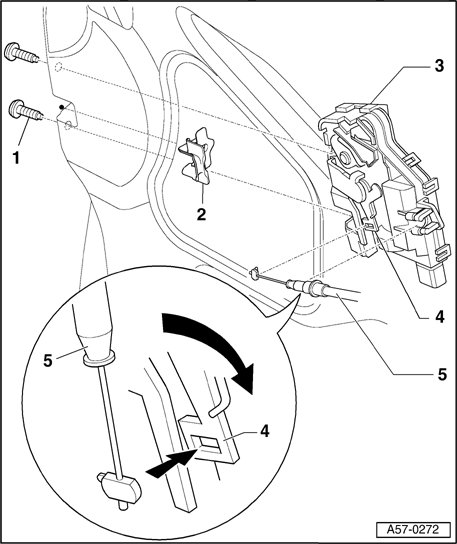

Fig 1: Door Lock (Up To Model Year 2005) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Screw

M8
20 Nm

2 - Backing

3 - Door lock

Removing → Door lock (up to model year 2005), removing and installing .

4 - Release lever

5 - Inside door release mechanism release
