Buffer stop for height adjustment

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

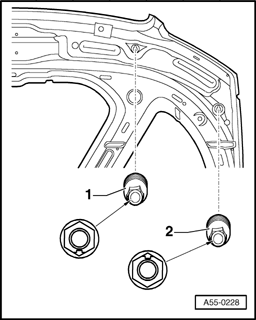

Fig 1: Buffer Stop For Height Adjustment
GW00020476Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • The buffer stops can be used for adjusting the height of the hood.
