Front hood seal (up to model year 2005) - assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

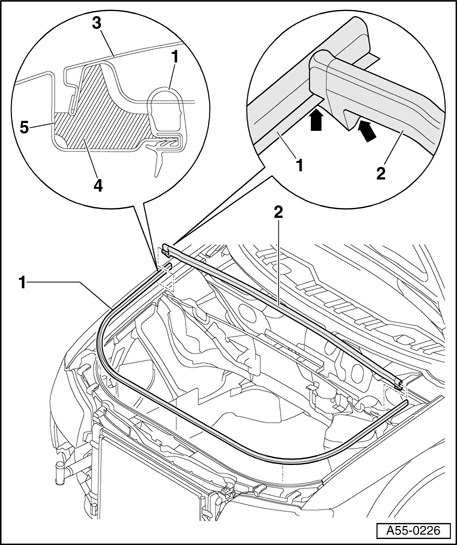

Fig 1: Front Hood Seal (Up To Model Year 2005) - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Lock carrier seal

Position seal at center on lock carrier (note center marking) and slide onto flange at lock carrier and fender at side.

2 - Plenum chamber seal

Bring molded part - arrows - into contact and press seal onto flange from above, working from outside toward inside.

3 - Hood

4 - Sealing profile

Self-adhesive.
Before installing, adhesion surface must be free of dust and grease.

5 - Fender
