Cover for convertible top compartment cover, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

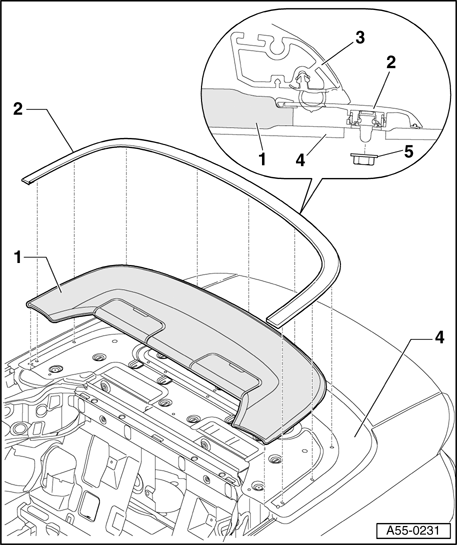

Fig 1: Cover For Convertible Top Compartment Cover Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover for convertible top compartment cover

Removing:

Remove convertible top compartment cover insulation Convertible top compartment cover insulation, removing and installing .
Remove trim.
Remove sheet metal screws (Qty. 2) from inner side for securing front side of insulation and remove from convertible top compartment cover.

2 - Trim molding

Remove convertible top compartment cover insulation Convertible top compartment cover insulation, removing and installing .
When installing, maintain tightening torque of 6.5 Nm, otherwise impressions will be visible on the trim.

3 - Convertible top

4 - Convertible top compartment cover

5 - Screw

6.5 Nm
Maintain torque, otherwise impressions will be visible on trim.
