Hold-down fastener, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

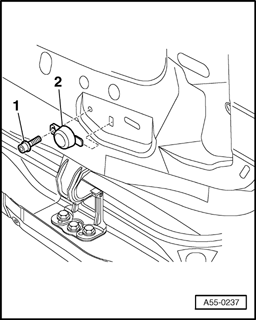

Fig 1: Hold-Down Fastener Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Convertible top compartment cover insulation removed.

Remove bolt - 1 - , slide hold-down fastener sideways out of convertible top compartment cover and remove.

1 - Screw (8 Nm)
