Window weatherstrips for front door (standard vehicle), removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
Remove window frame and window regulator → Window frame and window regulator, removing and installing .

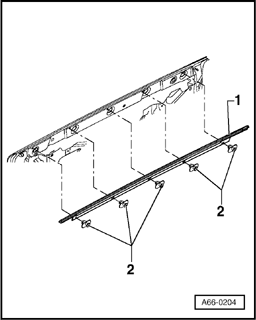

Fig 1: Removing Clips & Window Shaft Strip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove clips - 2 -.
Remove window shaft strip - 1 -.
Installation is performed in the reverse order of removal.
