Wheel spoiler

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Front wheel spoiler, removing and installing

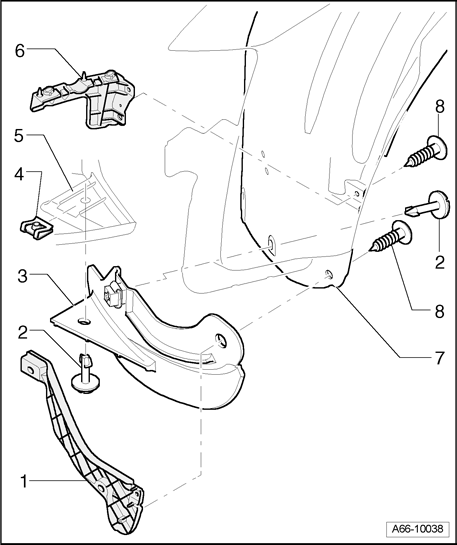

Fig 1: Front Wheel Spoiler Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Brace for fender

2 - Clamping pin

To loosen, rotate 180°.

3 - Front wheel spoiler

To remove, remove bolts - 8 - , rotate clamping pins 180°, pull out and pull out wheel spoiler under wheelhousing liner - 7 -.

4 - Speed nut

Slid onto noise insulation

5 - Noise insulation

6 - Guide piece for bumper

Secured to fender

7 - Front wheelhousing liner

8 - Sheet-metal screw

1.5 Nm

Rear wheel spoiler, removing and installing

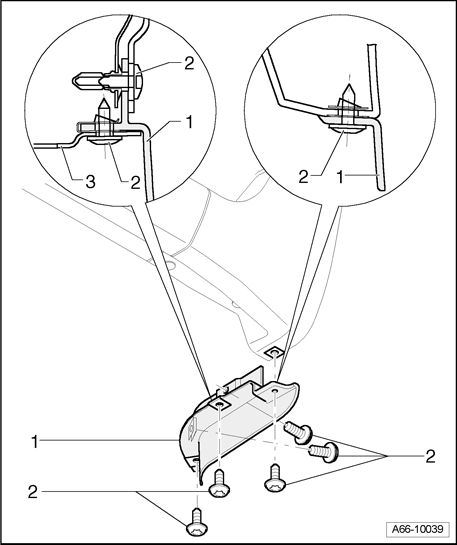

Fig 2: Rear Wheel Spoiler Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear wheel spoiler

Remove bolts - 2 - completely and pull out wheel spoiler downward under wheelhousing liner/underbody cover.

2 - Combination bolt

3 - Front underbody cover
